Low GDD Ultrafast Mirrors

Need Help?
Looking for
Custom Optics?

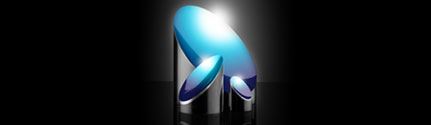

Ultrafast-Enhanced Silver Coated Off-Axis Parabolic (OAP) Mirrors Ultrafast-Enhanced Silver Coated Off-Axis Parabolic (OAP) Mirrors
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
  • Ultrafast-Enhanced Silver Coating for Ti:sapphire and Yb:doped Lasers
  • Low Group Delay Dispersion of 0 ±20fs2 @ 600 - 1050nm
  • <50Å RMS Surface Roughness to Minimize Scatter
High Performance Low GDD Ultrafast Mirrors High Performance Low GDD Ultrafast Mirrors
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
New
×
  • Designed with High Reflectivity for Ultrafast Beam Steering
  • Ion-Beam Sputtered Coating for Low Scatter and Absorption
  • GDD as Low as 0±20fs2 at Design Wavelength Range
Dual Band Low GDD Ultrafast Mirrors Dual Band Low GDD Ultrafast Mirrors
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
New
×
  • High Reflectivity & Low GDD for Ultrafast Beam Steering
  • Ion-Beam Sputtered Coatings Minimize Scatter and Absorption Losses
  • Near-Zero Group Delay Dispersion over Design Wavelength Ranges
Ultrafast-Enhanced Silver Laser Mirrors Ultrafast-Enhanced Silver Laser Mirrors
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
  • Reflectivity >99% at 600 – 1000nm or 800 – 1150nm
  • Low Group Delay Dispersion as Low as 0 ±20fs2
  • Ideal for Ti:sapphire and Yb:doped Lasers
  • Standard Imperial Sizes Available
Ultrafast-Enhanced Silver Concave Laser Mirrors Ultrafast-Enhanced Silver Concave Laser Mirrors
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More
  • Ideal for Focusing Ti:sapphire and Yb:doped Laser Pulses
  • Reflectivity >99% at 600 – 1000nm or 800 – 1150nm
  • Low Group Delay Dispersion as Low as 0 ±20fs2
  • Effective Focal Lengths from 25 to 500mm
Low GDD Ultrafast Mirrors Low GDD Ultrafast Mirrors New
×
High-Energy Picosecond and Femtosecond Ultrafast Mirrors High-Energy Picosecond and Femtosecond Ultrafast Mirrors New
×
UltraFast Innovations (UFI) EUV Attosecond Multilayer Mirrors UltraFast Innovations (UFI) EUV Attosecond Multilayer Mirrors New
×
  • Designed for 330 Attosecond Pulses @ 65eV (19nm)
  • Multilayer Coating with 38% Peak Reflectivity
  • ≤1Å Surface Roughness Superpolished Substrates
  • EUV Flat Mirrors and EUV Spherical Mirrors Designed at 13.5nm Also Available
UltraFast Innovations (UFI) High-Power Low-Loss Laser Mirrors UltraFast Innovations (UFI) High-Power Low-Loss Laser Mirrors
  • >99.99% Reflectivity at 1030nm and 1064nm
  • Laser Damage Threshold of 50 J/cm2 at 1064nm, 100Hz, 8ns
  • Universal Designs for Nanosecond, Picosecond, and Femtosecond Laser Pulses
  • Custom Options are Available up to 200mm Diameter

Low Group Delay Dispersion (GDD) Ultrafast Mirrors are used to reflect ultrafast beams without adding any temporal dispersion to the laser pulse. These mirrors feature dielectric coatings optimized to provide high reflectivity with minimized GDD around a narrow bandwidth centered at their design wavelength. They are generally designed with either a 0 or 45° angle of incidence for use in ultrafast beam steering applications. Compared to ultrafast silver coated mirrors, Low GDD Mirrors provide higher reflectance and higher damage thresholds, making them better suited for high power femtosecond lasers.

Edmund Optics has an expanding range of Low GDD Mirrors designed for Ti:sapphire and Yb:doped fiber laser harmonics. Our Low GDD Mirrors are coated through an ion-beam sputtered (IBS) coating process, ensuring high coating uniformity and durability, in addition to low scatter and absorption. Please contact us if your application requires a Low GDD Mirror with a custom wavelength, size, or other property.

×
×
