Ocean Optics HR High Resolution Spectrometers, available in HR2, HR4, and HR6 models, are designed to identify narrow spectral peaks with detailed spectral analysis for applications that require high-resolution solutions. The HR2 spectrometers feature high-resolution performance, fast scan speeds, and excellent thermal stability, providing rapid, real-time results ideal for applications such as plasma monitoring and pharmaceutical analysis. The HR4 spectrometers combine high-resolution spectral analysis with excellent thermal stability, making these models excel in precision-demanding environments such as DNA/RNA analysis, biomedical research, and high-throughput reflection testing. The HR6 spectrometers offer high sensitivity, high resolution, and excellent signal-to-noise ratio (SNR) performance for applications including protein absorbance and emission of broadband sources. The Ocean Optics HR High Resolution Spectrometers include the user-friendly OceanView software system to optimize spectrometer performance, ease system integration, and access data for analysis.
| Series | Manual | Model Number | EO PN | λ Range (nm) | Resolution in nm @ Slit Size | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 5um | 10um | 25um | 50um | 100um | 200um | |||||
| ST | ST Manual | ST-NIR-25 | #90-014 | 645 – 1085 | N/A | N/A | 2.2 | N/A | N/A | N/A |
| ST | ST Manual | ST-UV-25 | #90-015 | 185 – 650 | N/A | N/A | 2.2 | N/A | N/A | N/A |
| ST | ST Manual | ST-VIS-25 | #90-016 | 350 – 810 | N/A | N/A | 2.2 | N/A | N/A | N/A |
| SR2 | SR Manual | SR-2N750-25 | #90-017 | 570 – 860 | 0.54 | 0.61 | 0.84 | 1.33 | 2.36 | 4.34 |
| SR2 | SR Manual | SR-2UVV300-25 | #90-018 | 195 – 850 | 0.86 | 1.01 | 1.33 | 2.06 | 3.8 | 7.61 |
| SR2 | SR Manual | SR-2VN500-25 | #90-019 | 350 – 1040 | 0.86 | 1.02 | 1.34 | 2.08 | 3.83 | 7.66 |
| SR4 | SR Manual | SR-4UVV300-25 | #90-020 | 190 – 910 | 1.17 | 1.25 | 1.65 | 2.55 | 4.62 | 9.24 |
| SR4 | SR Manual | SR-4VN500-25 | #90-021 | 350 – 1040 | 1.17 | 1.25 | 1.65 | 2.55 | 4.62 | 9.24 |
| SR6 | SR Manual | SR-6UVV300-25 | #90-022 | 180 – 900 | 1.17 | 1.25 | 1.64 | 2.54 | 4.68 | 9.36 |
| SR6 | SR Manual | SR-6VN500-25 | #90-023 | 350 – 1040 | 1.17 | 1.25 | 1.64 | 2.54 | 4.68 | 9.36 |
| HR2 | HR Manual | HR-2N750-25 | #90-024 | 750 – 900 | 0.16 | 0.2 | 0.24 | 0.462 | 0.88 | 1.68 |
| HR2 | HR Manual | HR-2UVV300-25 | #90-025 | 200 – 650 | 0.35 | 0.46 | 0.58 | 0.97 | 1.84 | 3.52 |
| HR2 | HR Manual | HR-2VIS500-25 | #90-026 | 400 – 850 | 0.41 | 0.53 | 0.57 | 0.99 | 1.73 | 3.34 |
| HR2 | HR Manual | HR-2XR500-25 | #91-559 | 190 – 1100 | 0.71 | 0.84 | 1.13 | 1.97 | 3.76 | 7.19 |
| HR4 | HR Manual | HR-4UVV300-25 | #90-027 | 200 – 660 | 0.26 | 0.48 | 0.57 | 0.96 | 1.82 | 3.48 |
| HR4 | HR Manual | HR-4VIS500-25 | #90-028 | 400 – 850 | 0.26 | 0.48 | 0.57 | 0.96 | 1.82 | 3.48 |
| HR4 | HR Manual | HR-4XR500-25 | #91-560 | 190 – 1100 | 0.54 | 0.8 | 1 | 2 | 3.78 | 7.24 |
| HR6 | HR Manual | HR-6VIS500-25 | #90-029 | 400 – 840 | 0.35 | 0.46 | 0.58 | 0.97 | 1.84 | 3.54 |
| HR6 | HR Manual | HR-6UVV300-25 | #90-030 | 200 – 650 | 0.35 | 0.46 | 0.58 | 0.97 | 1.84 | 3.54 |
| HR6 | HR Manual | HR-6XR500-25 | #91-561 | 190 – 1100 | 0.71 | 0.94 | 1.18 | 1.97 | 3.76 | 7.24 |
| QEPRO | QEPRO Manual | QEPRO-N750-25 | #90-732 | 640 – 810 | 0.4 | 0.44 | 0.52 | 0.66 | 0.94 | 1.78 |
| QEPRO | QEPRO Manual | QEPRO-UVV300-25 | #90-733 | 220 – 650 | 0.8 | 0.88 | 1.04 | 1.32 | 1.88 | 3.56 |
| NR1.7 | NR Manual | NR-512-1.7-25 | #90-951 | 900 – 1650 | n/a | 2.72 | 2.85 | 4.02 | 6.71 | 13.03 |
| NR2.2 | NR Manual | NR-512-2.2-25 | #90-952 | 900 – 2190 | n/a | 3.12 | 4.8 | 5.52 | 10.08 | 18.96 |
| NR2.5 | NR Manual | NR-512-2.5-25 | #90-953 | 900 – 2450 | n/a | 4.21 | 6.5 | 7.45 | 13.6 | 29.59 |

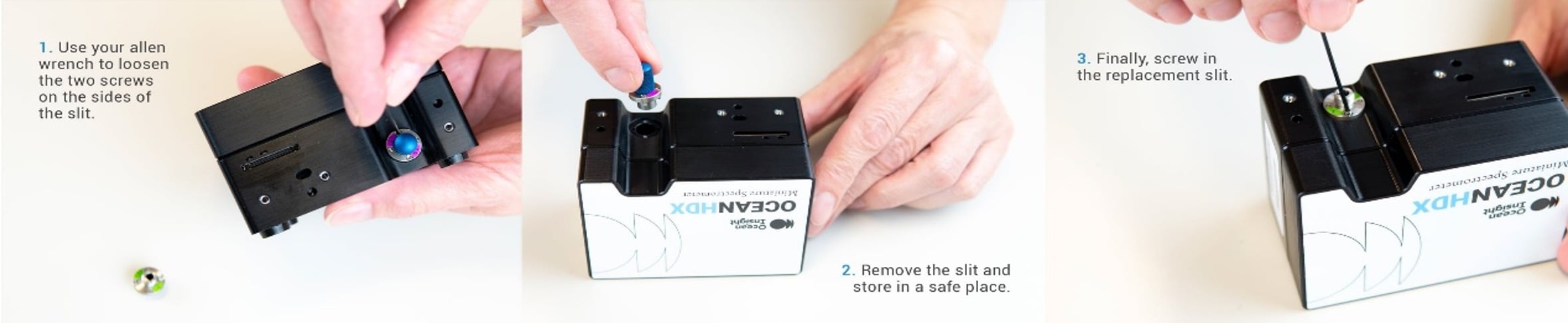

The interchangeable design of OO spectrometers allows users to easily swap different slit sizes, which historically could only be done by sending them to the manufacturer. This makes it easier to find the most efficient configuration for your application. While there are benefits to decreasing the slit width, there are also drawbacks. The main benefit is that resolution is increased when the slit size decreases. This can be essential when precise measurements are needed. On the contrary, as the slit size decreases, light throughput also decreases leading to longer acquisition times. This would not be ideal for applications where speed is a factor. When changing the slit size from the given 25um one, it is also important to note that this can slightly skew wavleength calibration, but the affects would be minimal.
Overall, selecting the best slit size for an application is a balancing act of the required speed and resolution. It is recommended to purchase the slit kit if it is unclear which slit size would be best for an application.
| Ocean Optics Illumination Options | |||||
|---|---|---|---|---|---|
| Type | Model (Spectral output found in link) |
λ Range (nm) | Fiber Connector | User Manual | EO PN |
| Deuterium-Tungsten Illuminator | DH-2000-BAL | 210 - 2500 | SMA 905 | DH-2000 | #90-546 |
| Xenon Illuminator | HPX-2000 | 185 - 2500 | SMA 905 | HPX-2000 | #90-545 |
| Tungsten-Halogen Illuminator | HL-2000-LL-FHSA | 360 - 2400 | SMA 905 | HL-2000 | #90-544 |
