Name: 500 - 530nm, 12.7mm Dia., Ultrafast Mirror
Brand: TECHSPEC
SKU: 17-551
Price: $179.00

Surface Quality:

20-10

Type:

Laser Mirror

Typical Applications:

Yb:doped Lasers 2nd Harmonic

Parallelism (arcmin):

Clear Aperture (%):

>90

Back Surface:

Commercial Polish

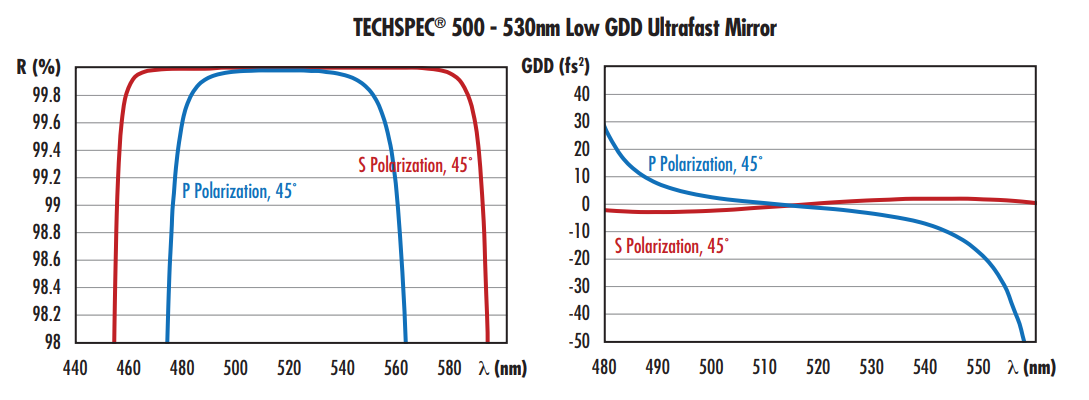

Coating Specification:

R_s >99.75% @ 500 - 530nm
R_p >99.5% @ 500 - 530nm

GDD Specification:

0 ±20fs² @ 500 - 530nm (s-pol & p-pol)

Wavelength Range (nm):

500 - 530

Surface Flatness (P-V):

λ/8

Coating Type:

Dielectric

Damage Threshold, Pulsed:

0.17 J/cm² @ 515nm, 178fs, 1 pulse (typical)
0.15 J/cm² @ 515nm, 178fs, 10kHz, 1000 pulses (typical)
0.2 J/cm² @ 515 nm, 1 ps FWHM, 100 Hz, P-Polarization, 1000 pulses

Coating:

Ultrafast (480-550nm)

Design Wavelength DWL (nm):

515

Diameter (mm):

12.70 +0.00/-0.10

Thickness (mm):

6.35 ±0.20

Angle of Incidence (°):

Fused Silica (Corning 7980)

Note:

This optic can be used over an extended wavelength range of 480-550nm for S-polarized light.

Regulatory Compliance

RoHS:

Compliant

Certificate of Conformance:

View

Product Family Description

Designed with High Reflectivity for Ultrafast Beam Steering
Ion-Beam Sputtered Coating for Low Scatter and Absorption
GDD as Low as 0±20fs² at Design Wavelength Range

TECHSPEC® High Performance Low GDD Ultrafast Mirrors are designed to have high reflectivity at 0° or 45° angles of incidence, making them ideal for ultrafast laser beam steering applications. These mirrors have a dispersion compensating coating obtained through a precision ion beam sputtering (IBS) process, providing lower scatter and absorption than traditional dielectric laser mirrors. TECHSPEC High Performance Low GDD Ultrafast Mirrors have a group delay dispersion (GDD) of near zero at their design wavelength range, minimizing dispersion of the reflected beam. Typical applications include use in the transport of femtosecond laser pulses.

Note: Please contact us if your application requires a TECHSPEC High Performance Low GDD Ultrafast Mirror with a custom wavelength, angle, or size.
