SAG Calculator

View All Technical Tools

Radius of Curvature (mm):

Diameter (mm):

Sag (mm): --

Focal Length Calculator

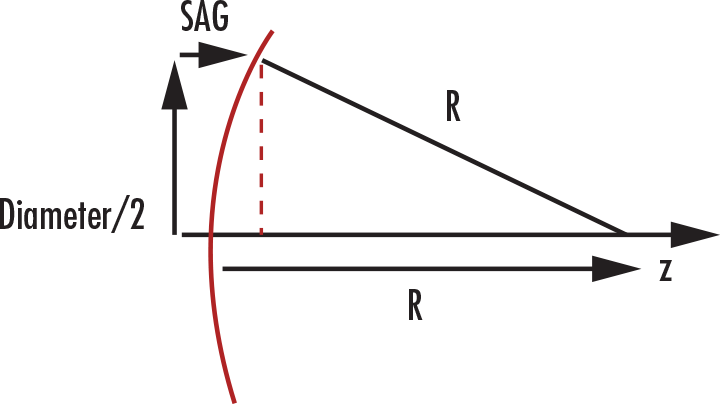

$$ \text{SAG} = R - \sqrt{R^2 - \left( \frac{D}{2} \right)^2} $$
R Radius of Curvature
D Diameter

Description

Determine the sag of a surface based on radius of curvature and diameter.

Related Product Category: Optical Lenses
