EDMUND OPTICS®
LASER OPTICS CENTER
Oldsmar, Florida USA

Dedicated Laser Optics Manufacturing Center of Excellence

The Edmund Optics Florida Laser Optics Center Manufactures a wide range of optical components with high laser damage threshold and laser crystal coatings from the UV to the far IR. This expands Edmund Optics’ laser optics manufacturing capabilities across crystal and glass fabrication, polishing, metrology, high laser damage threshold and diamond-like carbon coatings, inspection, and testing. The Florida Laser Optics Center's 34,000 sq. ft (3,159 m2) facility, located outside of Tampa, FL, is home to approximately 50 employees, many of whom are laser optics experts.

  View Press Release

Edmund Optics Florida 2024 - Hurricane Updates
QTF
Edmund Optics Laser Optics Manufacturing Team

Capabilities

  • High LIDT Coatings

  • Laser Crystal Coating and Polishing

  • Diamond-Like Carbon Coatings


Depositing coatings with a high laser-induced damage threshold (LIDT) requires advanced process control and monitoring of manufacturing parameters, including cleanliness and coating repeatability. A continuous industry push towards higher-power lasers makes LIDT increasingly important for laser optics. The Edmund Optics Florida Laser Optics Center’s superior and proven high LIDT coating capabilities, combined with in-house LIDT testing, ensure that the optics you receive can meet your application’s demanding LIDT requirements.

  • High LIDT coating options covering 248nm to 12µm
  • All common laser optics substrates including N-BK7 and Nd:YAG
Optical Filter Glass

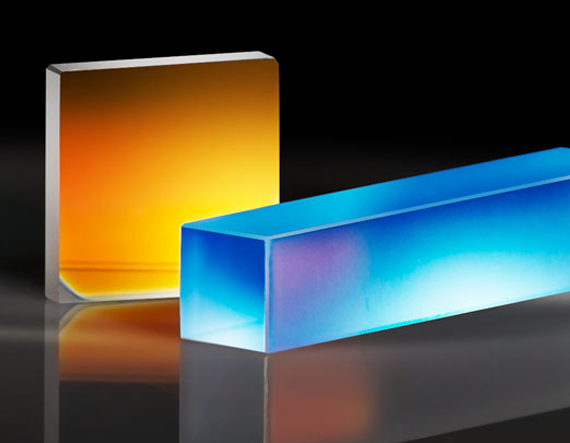

Laser crystals function as gain media for solid-state laser sources. They are typically doped with rare earth or transition metal ions, which amplify the laser light through stimulated emission. Non-linear laser crystals are used for frequency conversion of laser sources. The Edmund Optics Florida Laser Optics Center has the capabilities to both polish and coat laser crystals in a wide variety of materials. Their precision polishing improves coating adhesion, which minimizes losses and increases LIDT.

  • Crystal materials including YAG, YALO, YLF, KTP, YVO4, PPLN, and PPSLT
  • Form factors including round, rectangular, and zigzag slabs
  • Crystal polishing and high LIDT coatings
LEARN MORE
Optical Filter Glass

Diamond-like carbon (DLC) coatings feature properties similar to natural diamonds like hardness and stress and corrosion resistance. They offer high transmission in the infrared (IR) and are ideal for harsh environment IR applications requiring anti-reflective coatings. They are often used in defense applications and applications that might expose the coatings to potential scratches, contamination, and stress.

  • Deposited on IR materials including Germanium and Silicon
  • Increase the longevity of optics in harsh environments
  • Nano-composite carbon coatings that replicate properties of natural diamond
LEARN MORE
Polarizers

Complex Optical Coatings

  • Design and Deposition of Optical Coatings for Both Catalog and Custom Laser Optics
  • Complex Coatings Including Multi-Band Anti-Reflective or Highly-Reflective E-beam Coatings
  • High LDTs and Control of Group Delay Dispersion (GDD) for Ultrafast Applications

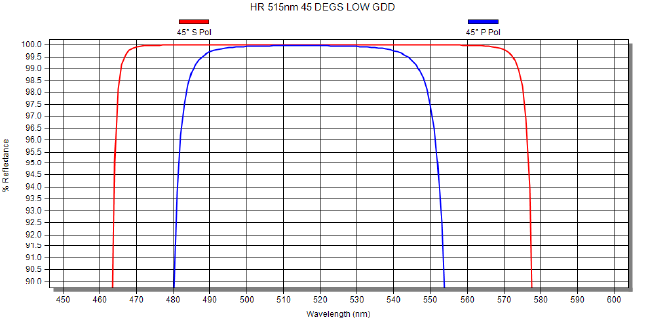

Example Reflectance for Highly-Reflective, Low-GDD Mirror

Polarizers

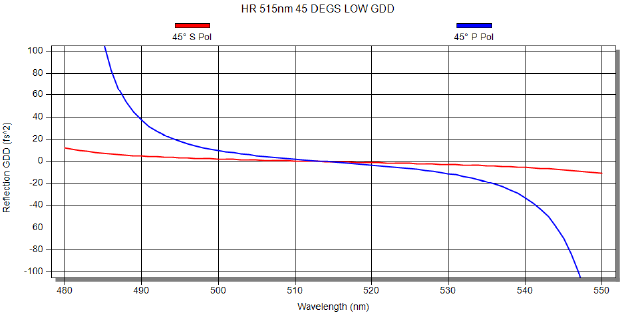

Example GDD for Highly-Reflective, Low-GDD Mirror

Polarizers

Products Available & Ready for Purchase

Nd:YAG Laser Line Mirrors
TECHSPEC

Nd:YAG Laser Line Mirrors

Yb:YAG Laser Line Mirrors
TECHSPEC

Yb:YAG Laser Line Mirrors

Concave Laser Line Mirrors
TECHSPEC

Concave Laser Line Mirrors

Excimer Laser Line Mirrors
TECHSPEC

Excimer Laser Line Mirrors

Nd:YAG Harmonic Separators
TECHSPEC

Nd:YAG Harmonic Separators

Broadband Dielectric λ/10 Mirrors
TECHSPEC

Broadband Dielectric λ/10 Mirrors

Broadband Dielectric Coated Right Angle Mirrors
TECHSPEC

Broadband Dielectric Coated Right Angle Mirrors

λ/10 Laser Line Coated Windows
TECHSPEC

λ/10 Laser Line Coated Windows

λ/20 High Power Laser Line Windows
TECHSPEC

λ/20 High Power Laser Line Windows

Nd:YAG Laser Line Beam Samplers
TECHSPEC

Nd:YAG Laser Line Beam Samplers

Laser Debris Shields
TECHSPEC

Laser Debris Shields

Laser Grade Plano-Convex (PCX) Lenses
TECHSPEC

Laser Grade Plano-Convex (PCX) Lenses

λ/20 PCX Lenses
TECHSPEC

λ/20 PCX Lenses

Laser Grade Laser Line Cylinder Lenses
TECHSPEC

Laser Grade Laser Line Cylinder Lenses

High Power Laser Line Right Angle Prisms
TECHSPEC

High Power Laser Line Right Angle Prisms

Nd:YAG Laser Line λ/20 UV Fused Silica Right Angle Prisms
TECHSPEC

Nd:YAG Laser Line λ/20 UV Fused Silica Right Angle Prisms

Laser Line λ/20 High Tolerance Right Angle Mirrors
TECHSPEC

Laser Line λ/20 High Tolerance Right Angle Mirrors

Fused Silica Wedge Prisms
TECHSPEC

Fused Silica Wedge Prisms

Vega™ Broadband Beam Expanders
TECHSPEC

Vega™ Broadband Beam Expanders

Vega™ Laser Line Beam Expanders
TECHSPEC

Vega™ Laser Line Beam Expanders
