Diamond Turning




Overview

Single Point Diamond Turning is a manufacturing technique for producing off-axis parabolic (OAP) mirrors, off-axis elliptical (OAE) mirrors, and other precision metal optical components. Off-axis focusing mirrors are aberration-free across a broadband wavelength range, making them ideal for use in instrumentation and laser systems including Schlieren, MTF, FLIR, and FTIR, along with IR lasers such as Quantum cascade lasers. Edmund Optics® offers build-to-print or custom capabilities to meet your application needs. Whether standard or custom, our expert optical design and diamond turning staff can develop customized solutions incorporating custom sizes and shapes, a variety of metal mirror coatings, or other modifications. Contact us today to speak with an expert or receive an expedited quote.

Diamond Turning Capabilities
  Commercial Precision High Precision
Reflected Wavefront Error (P - V @ 632nm) λ λ/2 λ/8
Absolute Profile 125µm 50µm 25µm
Surface Quality 80-50 60-40 40-20
Surface Roughness (RMS)
Diameter: 1/4" - 1" 50Å 30Å 30Å
Diameter: 1" - 2" 125Å 100Å 75Å
Diameter: > 2" Contact us to discuss
Additional Diamond Turning Specifications
Geometries Off-Axis Parabolas, Off-Axis Ellipses, and Planar Surfaces
Off-Axis Angles 15 - 120°
Dimensions (Diameter, Length, Width, & Height) 6-254mm
Coatings Uncoated, Aluminum, Protected Gold, Bare Gold, and Custom (upon request)
Materials Metals (such as Aluminum), Crystalline Materials (such as Germanium), and Plastics (such as Zeonex)

Build-to-Print Manufacturing

Edmund Optics has build-to-print manufacturing capabilities and can diamond turn off-axis parabolic mirrors, off-axis elliptical mirrors, and other precision metal optical components to meet your exact specifications. Our diamond turning staff are experienced at optimizing designs for manufacturability and cost reduction.

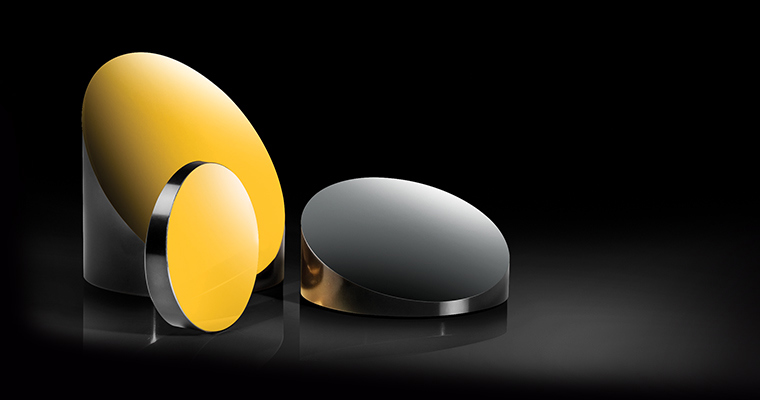

OAP
Diamond Turning
Figure 1: Build-to-Print Capabilities Available

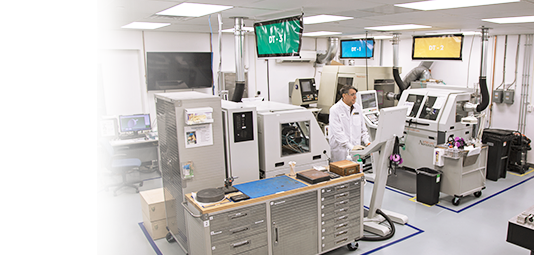

Manufacturing Equipment

  • Moore Nanotech® Multi-Axis UPL Diamond Turning Machines

Metrology
