Board-Level Cameras

Need Help?
Looking for
Custom Optics?

Category
    Manufacturer
    Camera Family
    Type
    Imaging Device
    Type of Sensor
    Type of Shutter
    Camera Sensor Format
    Resolution (MegaPixels)
    Pixel Size, H x V (μm)
    Frame Rate (fps)
    Video Output
    Mount

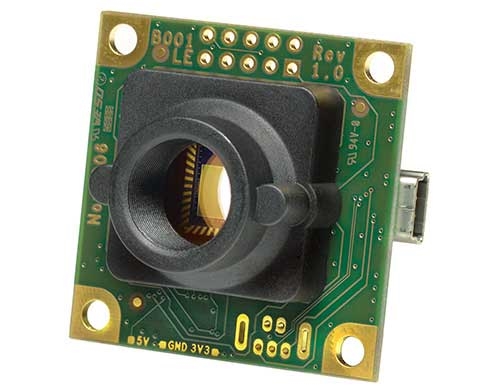

    EO USB 2.0 Board Level Cameras EO USB 2.0 Board Level Cameras
    • High Resolution
    • Standard M12 x 0.5 Lens Mount
    • Software SDK Included
    • Adjustable Frame Rate via Binning, Sub-sampling or AOI
    FireWire.a VGA Board Level Cameras FireWire.a VGA Board Level Cameras
    • Full Frame Electronic Shutter
    • Standard M12 x 0.5 Lens Mount
    • Uncompressed VGA Picture Up to 30fps
    • DCAM Compliant
    Monochrome and Color Micro Board Level Cameras Monochrome and Color Micro Board Level Cameras
    • Monochrome and Color Versions
    • Models With 3.8mm or 6mm Lens, or CS-Mount
    • ¼" Interline Transfer CCD Sensor
    • Require a 12V DC Regulated Power Supply
    PixeLINK® USB 3.0 Cameras PixeLINK® USB 3.0 Cameras
    • Resolutions Up to 20MP
    • Sensor Sizes from ½" to 1.1"
    • Right Angle Housing and Board Level Configurations Available
    PixeLINK® FireWire.a CMOS Cameras PixeLINK® FireWire.a CMOS Cameras
    • 0.3 to 6.6 MegaPixel Color/Monochrome CMOS Arrays
    • External Trigger and General-Purpose Output Controls
    • FireWire Interface, DCAM Compliant
    • USB2.0 and GigE Versions Also Available
    PixeLINK® GigE Cameras PixeLINK® GigE Cameras
    • 0.3 to 6.6 MegaPixel Color/Monochrome CMOS Arrays
    • External Trigger and General-Purpose Output Controls
    • GigE Interface, GenICam Compliant
    • FireWire.a and USB2.0 Versions Also Available
    PixeLINK® USB 2.0 CMOS Cameras PixeLINK® USB 2.0 CMOS Cameras
    • 0.3 to 6.6 MegaPixel Color/Monochrome CMOS Arrays
    • External Trigger and General-Purpose Output Controls
    • Out of the Box Functionality
    • FireWire.a and GigE Versions Also Available

    View all Resources Related to Board-Level Cameras

    Board-Level Cameras are used in a variety of applications for capturing images. Board-Level Cameras are specialized imaging cameras used in a large number of imaging applications such as factory automation or machine vision. Board-Level Cameras are available in a range of sensor formats to increase versatility. Board-Level Cameras are available with CCD or CMOS sensor types. CCD technology uses an analog signal to provide a uniform, high resolution image. CMOS technology uses digital signals to produce a quicker, low-power image.

    Edmund Optics offers a wide range of Board-Level Cameras in multiple sensor formats or types including CCD or CMOS. Board-Level Cameras are extremely versatile imaging devices that can be effective in nearly any environment or application due to their versatility in addition to the range of options available. These cameras are ideal for laboratory integration or OEM implementation. A number of power supplies as well as connector cables are available as well.
